A 50kVA PowerBack multi-home pedestal job is not the same as a single-house Service Saver call. One open hot or neutral at a secondary pedestal can take down every home fed from that cabinet. A 15kVA or 20kVA unit restores one meter. It does not restore the pedestal.
This post is for line superintendents, operations planners, and co-op or municipal crews who already know the small Add-a-leg unit and need the larger tool when several customers are dark from one underground fault.
What a Multi-Home Pedestal Actually Is
In underground residential distribution, the transformer rarely feeds each house with its own isolated secondary all the way from the pad. A secondary or joint-use pedestal sits at the lot line or easement and splits the secondary to two, three, four, or more services.
If the incoming hot or the incoming neutral opens before or inside that pedestal, every downstream meter loses full 120/240V. The ticket looks like four outage calls. The electrical problem is one conductor.
Image 1: Typical multi-home secondary pedestal on a residential street
Alt text: Multi-home underground secondary pedestal feeding several residential services
Why the Small Unit Is the Wrong Tool
PowerBack Lite models are built for a single 150A or 200A service. That is the right answer when one house is out. It is the wrong answer when the pedestal is the common point.
| Scene | Combined load | Unit that fits |
|---|---|---|
| One house, one meter | 150A–200A | PowerBack Lite 15kVA or 20kVA |
| Pedestal feeding 2–3 homes | Above a single-home rating | 40kVA PowerBack |
| Pedestal feeding 4 or more homes | Multi-home diversity on one secondary | 50kVA PowerBack |
| Multi-meter cabinet with a bus | Bank of meters on one incoming feed | 50kVA PowerBack |
Arriving with a Lite unit on a multi-home pedestal leaves most of the customers off. The crew then either digs immediately or makes a second trip with a larger cart. Both cost more than stocking the 50kVA PowerBack for this job.
Image 2: Secondary pedestal in a subdivision easement, several homes behind it
Alt text: Residential multi-home pedestal in an underground subdivision serving multiple houses
How Crews Use a 50kVA PowerBack on a Pedestal
A Midwest cooperative crew described the work in one sentence: they use the large unit to make up a missing leg in a pedestal that feeds multiple homes.
The sequence is the same idea as a single-home restoration, applied at the common point:
-
- Confirm which conductor is open at the pedestal, not only at one meter.
-
- Verify the remaining good hot and neutral can support the restoration connection.
-
- Land the 50kVA PowerBack so the missing voltage is rebuilt for the pedestal, not for one socket.
-
- Restore the downstream homes together.
-
- Leave the unit in place and schedule the locate, excavate, and splice as planned work.
The permanent repair does not go away. The emergency part of the job shrinks from “four dark houses and a night dig” to “pedestal restored, repair on the next shift.”
The Second Job: Multi-Meter Facilities
The same crew uses the large unit on a multi-meter facility when there is a bus bar and a connection cabinet feeding the meters. Apartments, small commercial strips, and some municipal buildings are built that way. One incoming secondary feeds a cabinet. The cabinet feeds a row of meters.
A Lite unit at one tenant meter does not restore the bank. A 50kVA PowerBack at the cabinet can, if the landing point exists.
That condition matters. If there is no bus and no cabinet, the crew is back to single-meter work. If there is a bus and a connection cabinet, the 50kVA PowerBack is the tool.

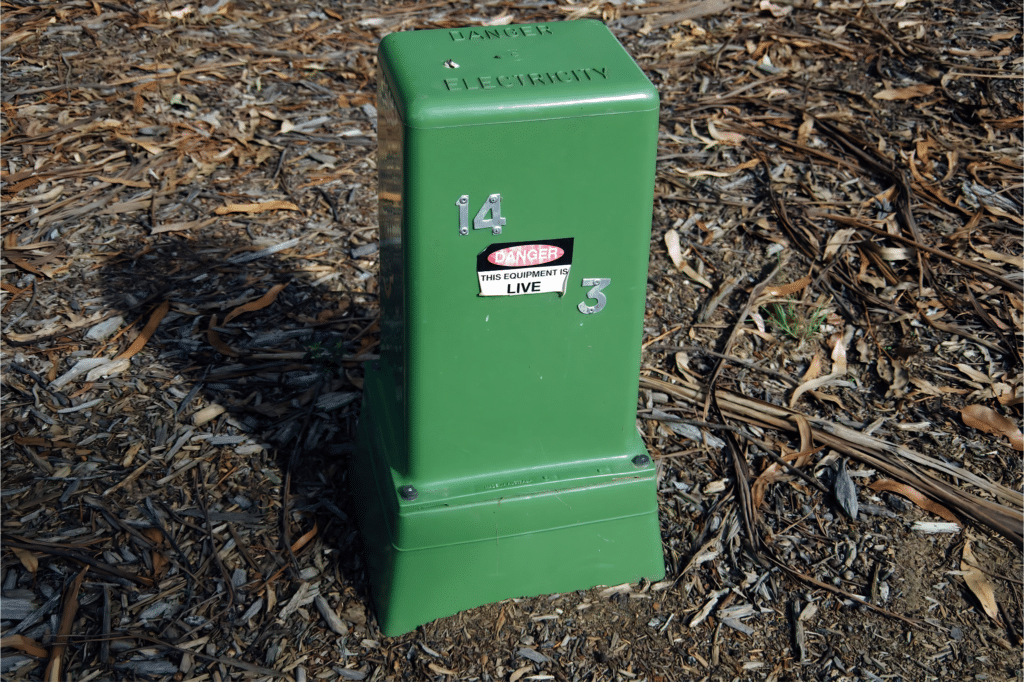

Image 3: Close view of a locked multi-home pedestal cabinet
Alt text: Close-up of a multi-home electrical pedestal cabinet used for underground secondary distribution
Why This Job Is Under-Specified
Most Service Saver training and most fleet specs were written around one house. Planners bought 15kVA and 20kVA carts. The pedestal ticket kept showing up anyway. Crews improvised with whatever large unit they had, or they dug.
The market gap is not that utilities lack multi-home pedestals. It is that the restoration tool was never named for that layout. Once operations sees the job as “restore the pedestal,” the 50kVA PowerBack becomes a line-truck item instead of a brochure extra.
What Changes When the Pedestal Comes Back First
| If you dig the same night | If you restore the pedestal first |
|---|---|
| Several homes stay dark through the excavation | Homes return while the cable is still buried |
| Overtime and a digger on an unplanned shift | Permanent repair moves to planned hours |
| Four or five customer complaints, not one | One event, many customers restored together |
| SAIDI takes a cluster hit | Outage duration is cut to the install time |
For a co-op or municipal system, a cluster outage is louder than a single-home outage. Board members hear from streets, not from one meter.
Sizing Rule for the Truck
Keep Lite units for single meters. Put at least one 40kVA or 50kVA PowerBack on the roster if the territory has underground subdivisions or meter packs.
-
- Two or three homes off one pedestal: 40kVA can work.
-
- Four or more homes, unknown diversity, or a meter bank: 50kVA PowerBack.
-
- When the first responder cannot see how many services leave the pedestal, send the 50kVA.
The 50kVA PowerBack is rated for 400A-class work and weighs about 250 pounds on a wheeled stainless cart. It is the unit that belongs next to a multi-home pedestal, not in a single-family side yard unless the service itself is that large.
What to Tell Operations
If the outage list shows several addresses on the same block and the map shows a shared pedestal, do not dispatch only a Lite unit. Dispatch the 50kVA PowerBack. Restore the pedestal. Repair the cable on the utility’s clock.
That is the whole product story. The market already has the problem. It has not had a named tool for it.
FAQ
What is a 50kVA PowerBack multi-home pedestal application?
It is temporary restoration of a missing hot leg or neutral at a secondary pedestal that feeds more than one home, so all downstream services return together.
Can a 20kVA unit do this job?
Not if the combined load of the homes on that pedestal exceeds the Lite rating. Most multi-home pedestals need 40kVA or 50kVA.
Does the 50kVA PowerBack replace the cable repair?
No. It holds service while the permanent underground repair is scheduled.
Will it work on every multi-meter building?
It works where there is a bus bar and a connection cabinet that can accept the restoration connection. That is the same condition crews already use.
Should every truck carry a 50kVA PowerBack?
No. Single-home trucks should keep Lite units. The system needs enough 50kVA units to cover concurrent pedestal and multi-meter events.
