As electrical systems become more advanced and space-constrained, engineers are increasingly reevaluating traditional component choices. Many systems still rely on conventional E-I current transformers, but toroidal current transformers offer clear advantages in performance, size, and efficiency. These benefits are driving more designers to switch to toroidal designs for demanding applications.
Compact Design and Higher Power Density
One of the most immediate advantages of toroidal current transformers is their compact size. The donut-shaped core allows for a much smaller overall footprint compared to traditional E-I transformers. This makes toroidal CTs easier to integrate into crowded electrical panels, switchgear, and modern equipment where space is limited.
In applications such as data centers and industrial control systems, the ability to achieve the same or better performance in a smaller package directly supports higher power density and more efficient use of available space.
Superior Accuracy and Consistency
Toroidal current transformers generally provide better accuracy and lower phase angle error than comparable E-I designs. The closed magnetic path of the toroidal core ensures more uniform flux distribution, which reduces measurement errors.
This precision is especially valuable in metering, protection, and monitoring applications where even small inaccuracies can affect system performance or billing accuracy. Engineers who need reliable, consistent current measurement often find toroidal designs more dependable under varying load conditions.
Significantly Lower Electromagnetic Interference
Traditional E-I current transformers produce relatively high stray magnetic fields. These fields can interfere with sensitive electronics and create noise in nearby circuits. Toroidal current transformers contain the magnetic field within the core, resulting in much lower electromagnetic interference (EMI).
This characteristic makes toroidal CTs a better choice in environments with sensitive equipment, such as data centers, medical facilities, and industrial automation systems where EMI can disrupt performance.
Improved Efficiency and Lower Losses
Toroidal current transformers typically operate with lower core losses and lower magnetizing current than E-I designs. This results in higher overall efficiency and reduced heat generation.
In large-scale or continuously operating systems, even small efficiency improvements can lead to meaningful energy savings and lower cooling requirements over time. The reduced losses also contribute to longer equipment life and more stable thermal performance.
Toroidal vs Traditional E-I Current Transformers
| Feature | Toroidal Current Transformer | Traditional E-I Current Transformer | Benefit for Modern Systems |
|---|---|---|---|
| Size and Weight | Significantly smaller and lighter | Larger and heavier | Higher power density and easier integration |
| Electromagnetic Interference | Very low | Higher stray magnetic fields | Better compatibility with sensitive electronics |
| Accuracy and Phase Error | Generally superior | Moderate | More reliable metering and protection |
| Core Losses | Lower | Higher | Improved efficiency and reduced heat |
| Magnetizing Current | Lower | Higher | Better performance at light loads |
| Mounting Flexibility | Excellent (single center bolt) | More limited | Easier installation in tight spaces |
| Noise Level | Very low | Can produce audible hum | Quieter operation in sensitive environments |
Why More Engineers Are Switching to Toroidal Designs
The combination of compact size, lower losses, reduced EMI, and improved accuracy makes toroidal current transformers a stronger fit for many modern applications. Systems that prioritize efficiency, reliability, and space optimization often benefit from moving away from traditional E-I designs.
Whether the goal is improving power quality in data centers, enhancing measurement accuracy in utility systems, or reducing interference in industrial controls, toroidal current transformers provide measurable advantages that are difficult to ignore.
Bridgeport Magnetics Group: Precision Toroidal Current Transformers

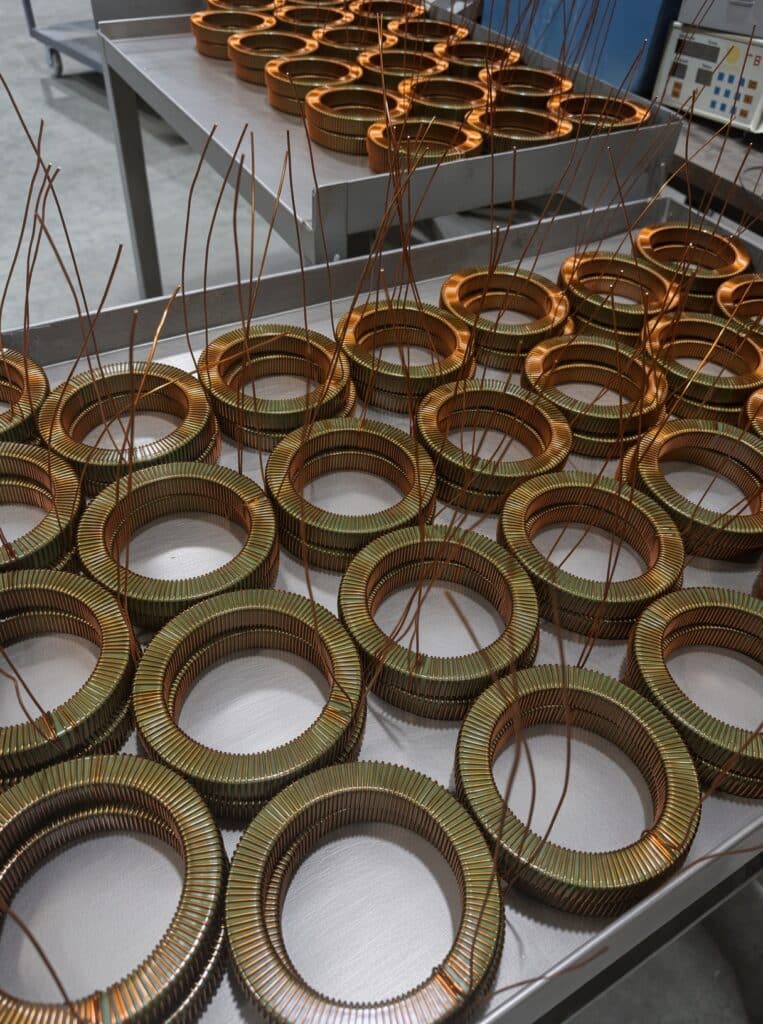

Bridgeport Magnetics Group designs and manufactures high-quality toroidal current transformers for demanding applications. Our expertise in precision winding and custom design allows us to deliver CTs with excellent accuracy, low losses, and reliable performance.
We work with customers who want to upgrade from traditional designs or need custom toroidal solutions tailored to specific voltage, current, and accuracy requirements.
Contact Bridgeport Magnetics Group to explore toroidal current transformer options for your system.
Phone: (203) 954-0050 Email: [email protected] Website: bridgeportmagnetics.com
Frequently Asked Questions
Why should I consider switching from E-I to toroidal current transformers? Toroidal CTs offer better accuracy, lower losses, reduced EMI, and a much smaller size. These improvements can enhance system efficiency and performance while making installation easier in space-limited environments.
Are toroidal current transformers more accurate than traditional designs? Yes. The closed core design provides more uniform flux distribution, which typically results in lower phase angle error and better overall accuracy.
In which applications do toroidal current transformers perform best? They excel in data centers, utility metering, industrial automation, power quality monitoring, and any system where low EMI, compact size, and high accuracy are important.
Can toroidal current transformers handle the same current ratings as E-I designs? Yes. Toroidal CTs are available in a wide range of current ratings and can be custom-designed to meet specific application requirements.
