Why Toroidal Medical Isolation Transformers Are More Common Than Traditional Designs
Every medical isolation transformer is not created equal. While traditional E-I (laminated) transformers have been used in electrical equipment for decades, toroidal designs have become the clear preference for most dedicated medical isolation transformers in use today.
This shift is not just about technology trends. It reflects the real-world demands of modern medical environments, where patient safety, electromagnetic compatibility, and equipment reliability are non-negotiable. Understanding why toroidal transformers have become more common helps hospitals, OEMs, and biomedical teams make better decisions when specifying medical isolation transformers.
Pictured: Toroidal Medical Isolation Transformer for Pulse Application
Why the Industry Shifted Toward Toroidal Designs
For many years, E-I transformers were the standard in most electrical applications, including some medical equipment. However, as medical safety standards became stricter, particularly around leakage current and electromagnetic interference, the limitations of traditional E-I designs became more apparent.
Medical isolation transformers must help equipment meet the demanding requirements of IEC 60601-1, especially for devices that come into direct or conductive contact with patients. Toroidal transformers naturally perform better in several key areas that directly impact patient safety and equipment performance.
This is why toroidal designs now dominate the medical isolation transformer market, while E-I transformers have become less common in this specific application.
E-I vs Toroidal Transformers in Medical Use
Here is a clear comparison of how the two transformer types perform in medical isolation applications:
| Factor | E-I (Laminated) Transformer | Toroidal Transformer | Why It Matters in Medical Settings |
|---|---|---|---|
| Leakage Current Performance | Higher | Significantly lower | Critical for meeting IEC 60601 patient safety limits |
| EMI / Stray Magnetic Field | Higher | Much lower | Reduces interference with sensitive monitoring and diagnostic equipment |
| Size and Weight | Larger and heavier | Smaller and lighter | Easier to integrate into medical devices and installations |
| Audible Noise | More noticeable hum | Very quiet | Important in patient care areas |
| Efficiency | Good | Higher | Less heat generation and lower operating costs |
| Ease of Meeting IEC 60601 Limits | More difficult | Easier | Helps OEMs achieve compliance faster |
| Typical Use in Medical Equipment | Some lower-cost or legacy devices | Most modern medical isolation transformers | Performance and safety advantages |

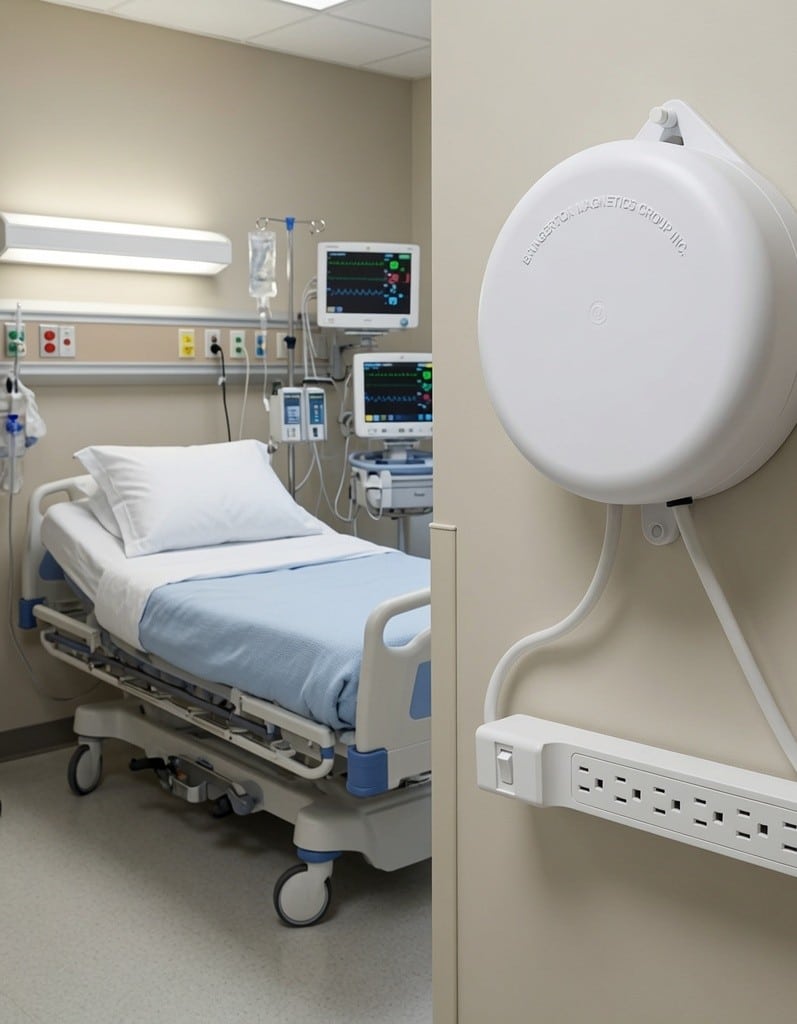

Pictured: Toroidal Medical Isolation Transformer IsoPuck
Why Toroidal Transformers Offer Clear Advantages
Several practical factors explain why toroidal medical isolation transformers have become the more common choice:
Lower Leakage Current Leakage current is one of the most important safety considerations in medical equipment. Toroidal transformers produce lower leakage current because of their continuous magnetic path and reduced capacitive coupling between windings. This makes it easier for medical devices to stay within the strict limits defined by IEC 60601-1.
Reduced Electromagnetic Interference Many medical devices are highly sensitive to electromagnetic fields. Toroidal transformers generate significantly less stray magnetic field than traditional E-I designs. This is especially valuable in environments with patient monitors, diagnostic equipment, and other sensitive electronics.
Smaller Size and Lower Weight Space is often limited in medical settings and medical devices. A toroidal transformer can deliver the same power rating in a more compact and lighter package. This advantage is particularly useful for portable equipment and installations where mounting space is restricted.
Quieter Operation Toroidal transformers operate with very low audible noise. In patient rooms and clinical environments, this contributes to a quieter and more comfortable setting.
Better Efficiency and Lower Heat Higher efficiency means less energy is wasted as heat. This can improve long-term reliability and reduce the need for additional cooling measures in medical equipment.
When E-I Transformers Are Still Used
E-I transformers have not disappeared completely from medical applications. They can still be found in:
-
- Lower-cost medical power supplies where leakage current requirements are less critical.
-
- Some legacy medical equipment designs.
-
- Applications where initial cost is the primary concern and performance trade-offs are acceptable.
However, for any medical isolation transformer specifically intended to support patient safety and regulatory compliance, toroidal designs are now the clear standard in the industry.
Popular Toroidal Medical Isolation Transformers
Bridgeport Magnetics manufactures compact toroidal medical isolation transformers under the IsoPuck brand. Two models frequently used in dental and hospital settings are the IP600/60 and the IP1500/60.
The IP600/60 is a 600VA medical isolation transformer designed for 120V operation. It is well suited for dental chairs, compact monitoring systems, and smaller medical devices where space is limited but strong leakage current performance is required.
The IP1500/60 is a 1500VA medical isolation transformer designed for 120V systems, with 230V configurations available on request. It provides higher capacity for multi-device setups and larger medical systems while maintaining excellent leakage current performance and support for IEC 60601-1 compliance.
Both models include electrostatic shielding and are built to help medical equipment meet strict safety standards.
Product Callout Bridgeport Magnetics IsoPuck Series Compact toroidal medical isolation transformers from 200 VA to 3000 VA, including the IP600/60 (600VA) and IP1500/60 (1500VA) models. Designed for 120V operation, with 230V configurations available. These models include electrostatic shielding to help achieve low leakage current and are commonly used in dental offices and hospital applications where IEC 60601-1 compliance is required. UL 60601-1 and IEC 60601-1 compliant. Custom voltage, lead, and configuration options available.
Request a quote or speak with our engineers
FAQ: Toroidal Medical Isolation Transformers Are More Common Than Traditional Designs
FAQ
Why are toroidal transformers more common in medical isolation transformers? Toroidal designs offer lower leakage current, reduced electromagnetic interference, smaller size, and quieter operation. These advantages make it easier for medical equipment to meet IEC 60601-1 safety requirements.
Are E-I transformers still used in medical equipment? Yes, but mostly in lower-cost or less critical applications. For dedicated medical isolation transformers that need to meet strict leakage current and safety standards, toroidal designs are now the clear preference.
Do toroidal transformers always outperform E-I transformers? In medical isolation applications, toroidal transformers generally provide better performance in the areas that matter most: leakage current, EMI, size, and noise. However, E-I transformers can still be acceptable in some non-critical medical power supply applications.
How does a toroidal design help reduce leakage current? The continuous magnetic path in a toroidal core reduces capacitive coupling between the primary and secondary windings, which is a major source of leakage current in traditional E-I transformers.
Which transformer type is better for sensitive medical equipment? Toroidal transformers are generally better suited for sensitive medical equipment because of their lower EMI and superior leakage current performance.
