As power demands increase and space becomes more limited, many OEMs are reevaluating their transformer choices. Medical equipment, battery energy storage systems (BESS), and data centers each have specific performance requirements that traditional E-I transformers often struggle to meet efficiently.
Custom toroidal transformers are gaining strong adoption in these markets because they deliver higher efficiency, lower electromagnetic interference, more compact size, and better thermal performance. These advantages help OEMs design systems that are more reliable, energy-efficient, and easier to integrate into modern equipment.
Why These Markets Are Driving Demand for Better Transformers
Medical devices must meet strict safety standards, including very low leakage current requirements. Battery energy storage systems need transformers that maintain high efficiency across varying loads while managing heat in compact installations. Data centers require transformers that support high power density and clean power delivery without taking up excessive space.
In each of these applications, the transformer is no longer just a commodity component. It directly impacts system efficiency, reliability, size, and compliance. As these markets continue to grow, many manufacturers are moving away from standard E-I designs toward custom toroidal solutions.
Advantages of Toroidal Transformers in Medical Applications
Medical equipment requires transformers that prioritize patient safety and electromagnetic compatibility. Toroidal isolation transformers are well suited for these applications because they can achieve very low leakage current while maintaining a compact footprint.
Key benefits include:
- Easier achievement of low leakage current to meet IEC 60601 standards
- Reduced electromagnetic interference that could affect sensitive monitoring and diagnostic equipment
- Compact design that supports smaller medical device enclosures
- High efficiency that helps minimize heat generation in enclosed systems
Many medical OEMs now specify custom toroidal isolation transformers for patient-connected devices and diagnostic systems where safety, reliability, and size are critical.

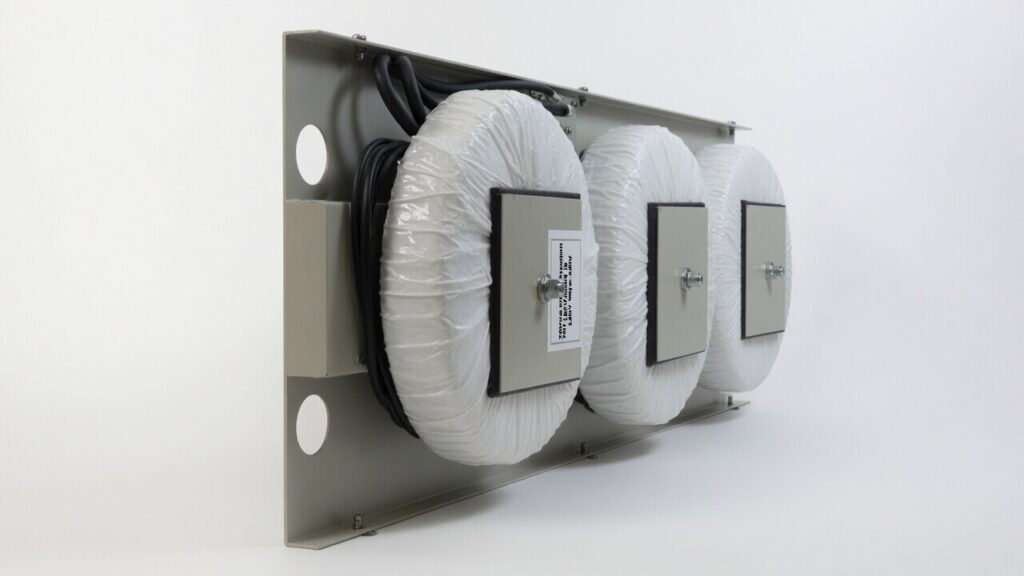

Advantages of Toroidal Transformers in Battery Energy Storage Systems
BESS applications require transformers that can operate efficiently through frequent charge and discharge cycles while maintaining good thermal performance. Toroidal transformers offer several advantages in these systems.
They typically deliver higher efficiency and lower core losses compared to traditional designs. This helps improve the overall round-trip efficiency of the energy storage system. Their compact size also supports higher power density, which is increasingly important as BESS installations move toward modular and containerized designs. Additionally, lower electromagnetic interference helps maintain the performance of nearby power electronics and control systems.

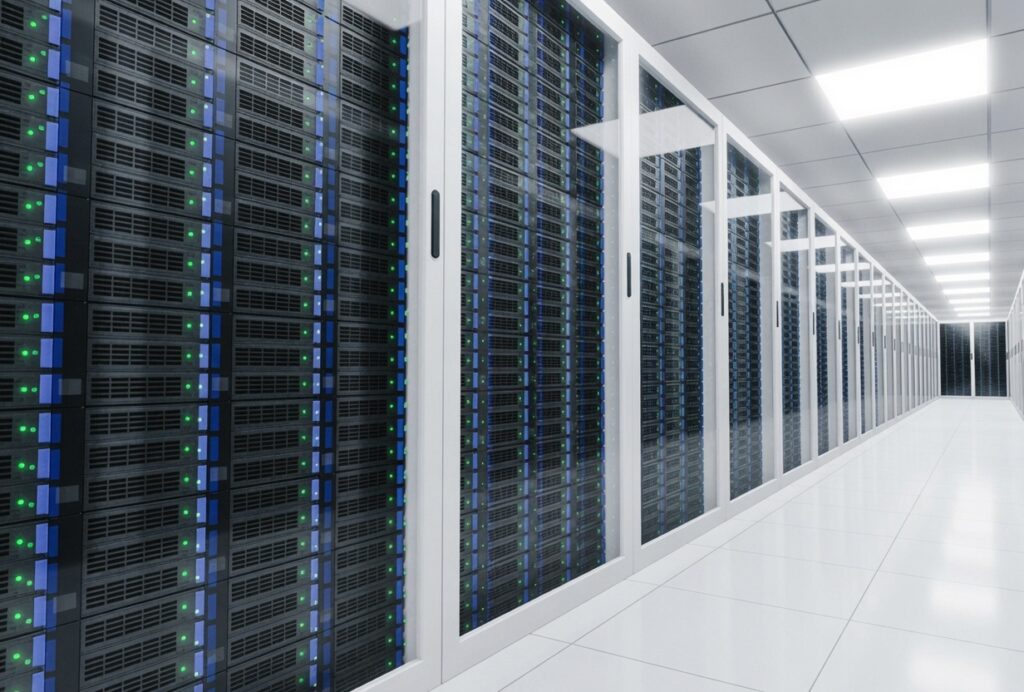

Advantages of Toroidal Transformers in Data Center Applications
Data centers face constant pressure to improve energy efficiency while increasing power density. Toroidal transformers support these goals through lower energy losses and a more compact form factor than equivalent E-I designs.
They also generate significantly less electromagnetic interference, which is beneficial in environments filled with sensitive IT equipment. The reduced heat output can help lower cooling requirements, contributing to better overall Power Usage Effectiveness (PUE). As data centers continue to scale, these characteristics make toroidal transformers an attractive option for power distribution and conversion equipment.
Toroidal vs Traditional E-I Transformers in These Applications
| Performance Factor | Toroidal Transformers | Traditional E-I Transformers | Relevance to Medical, BESS, and Data Centers |
|---|---|---|---|
| Efficiency | Typically 98–99% | Typically 94–97% | Lower energy losses and operating costs |
| Electromagnetic Interference | Very low | Higher stray fields | Better for sensitive electronics and compliance |
| Size and Weight | 40–50% smaller and lighter | Larger and heavier | Higher power density and easier integration |
| Leakage Current | Easier to achieve very low levels | Generally higher | Critical for medical safety standards |
| Thermal Performance | Better heat distribution | More prone to localized heating | Improved reliability in continuous operation |
| Customization Flexibility | High | Limited | Better alignment with specific OEM requirements |

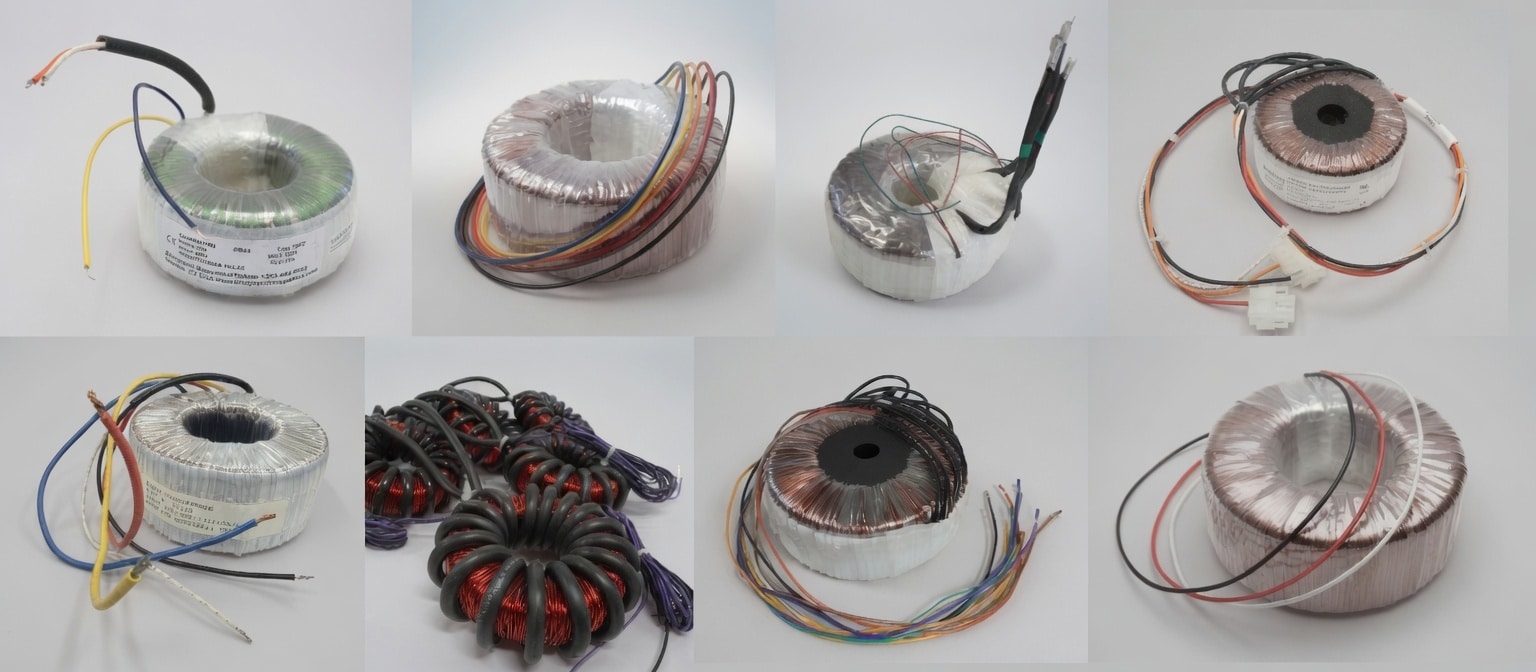

Why OEMs Are Moving Toward Custom Toroidal Designs
Leading OEMs in the medical, energy storage, and data center sectors are increasingly choosing custom toroidal transformers because they can be engineered to meet exact electrical, mechanical, and thermal specifications. This level of customization helps reduce design compromises and supports more optimized end products.
Custom toroidal transformers also allow OEMs to achieve better efficiency, smaller size, and higher reliability. These factors are becoming more important as competition increases and performance expectations continue to rise in these markets.
Bridgeport Magnetics Group: Custom Toroidal Transformers for Demanding Applications
Bridgeport Magnetics Group designs and manufactures custom toroidal transformers for medical equipment, battery energy storage systems, and data center applications. Our engineering team works closely with OEMs to develop solutions that meet specific performance, size, and safety requirements.
We offer both standard and fully custom toroidal transformers, including low-leakage isolation transformers for medical use and high-efficiency designs for BESS and power conversion systems. All products are manufactured in our Shelton, Connecticut facility with a focus on quality and consistency.
Contact Bridgeport Magnetics Group to discuss toroidal transformer solutions for your application.
Phone: (203) 954-0050 Email: [email protected] Website: bridgeportmagnetics.com
Frequently Asked Questions
Why are toroidal transformers preferred in medical and BESS applications? They offer higher efficiency, lower electromagnetic interference, more compact size, and better thermal performance compared to traditional designs. These characteristics support the strict safety, efficiency, and space requirements of these markets.
What makes custom toroidal transformers better for OEMs? Custom designs can be optimized for specific voltage, current, size, leakage current, and thermal requirements, allowing OEMs to achieve better overall system performance without major design compromises.
How do toroidal transformers help in data centers? They provide higher efficiency, lower EMI, and a smaller footprint, which supports higher power density and improved energy efficiency in space-constrained environments.
Are toroidal transformers suitable for high-power applications? Yes. Toroidal transformers are available in a wide range of power ratings and can be custom-engineered for demanding medical, BESS, and data center applications.
Ready to explore custom toroidal transformer solutions for medical, BESS, or data center applications? Contact Bridgeport Magnetics Group today.
