Standard Design De-buzzing Chokes
De-buzzing chokes that quiet the transformer noise caused by dimmed low-voltage halogen lighting.
Overview

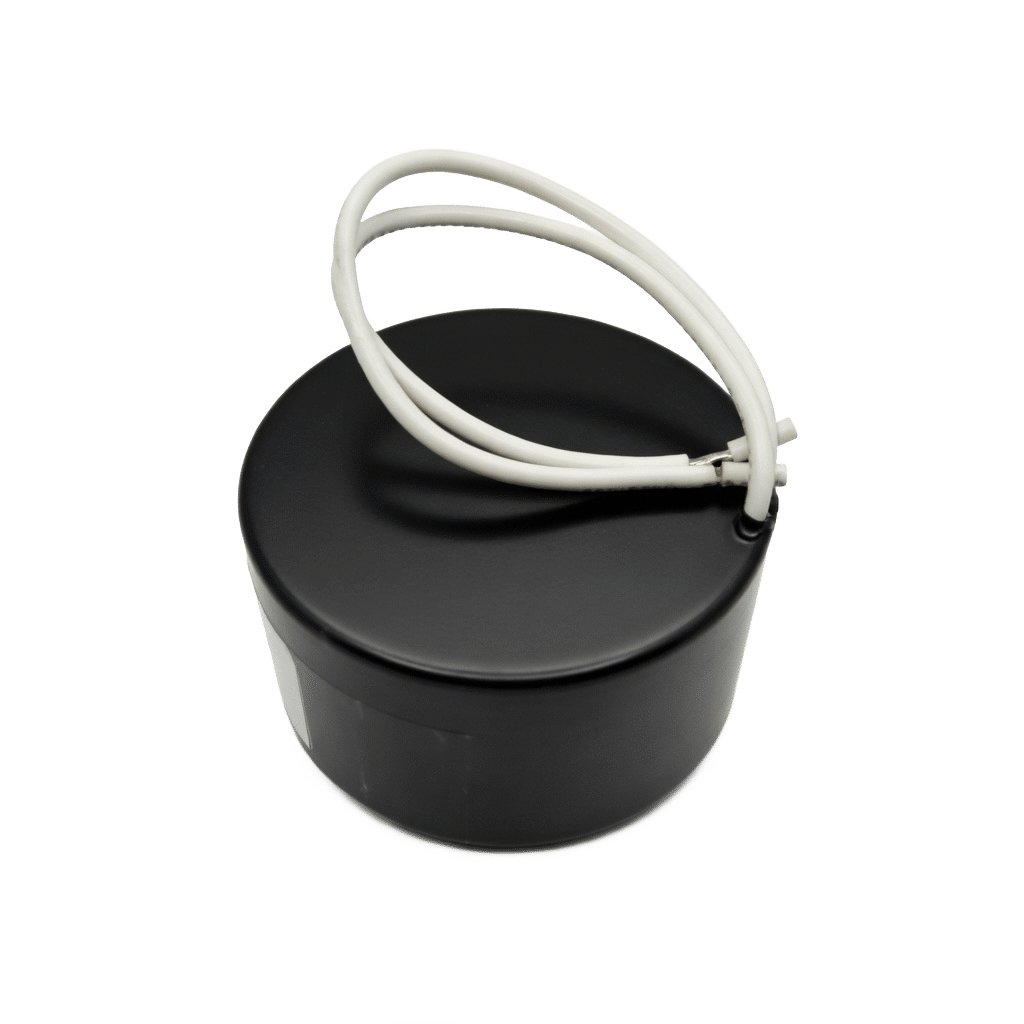

De-buzzing chokes are designed to reduce transformer noise caused by dimming low voltage Halogen lighting fixtures. Using most types of dimmers in conjunction with a low voltage toroidal transformer may cause the transformer to produce a noise best described as a buzzing sound. If the transformer is not in a remote location the noise may be annoying. Our de-buzzing chokes will smooth out the broken sinusoidal waveform to the transformer, significantly reducing the buzzing noise. The chokes come fully encapsulated in black epoxy with a 1/4″ center hole for easy one-bolt mounting. Flexible multi-stranded lead wire simplifies termination. Please call us for volume pricing and discounts.
Specifications
| Rating VA | P/N | Dimensions OD x HT (in.) (mm) | Weight (lbs.) | Price 1-9 pcs. |
| 200 | DB200 | 2.75 x 1.65 70 x 42 | 1.30 | $36.61 |
| 300 | DB300 | 2.75 x 1.70 70 x 43 | 1.35 | $36.61 |
| 500 | DB500 | 2.75 x 1.80 70 x 46 | 1.40 | $38.76 |
| 600 | DB600 | 2.75 x 1.85 70 x 47 | 1.45 | $38.76 |
| 750 | DB750 | 2.75 x 1.90 70 x 48 | 1.45 | $39.20 |
Let's build yours to spec.
Custom magnetics engineered and manufactured in the USA. Tell us your requirements and our engineers will help.
