Hospitals and healthcare facilities require the highest levels of electrical safety because medical equipment often comes into direct or conductive contact with patients. A single fault or excessive leakage current in these environments can pose serious risks. This is why hospital grade medical isolation transformers are a critical component in modern healthcare electrical systems.
A hospital grade medical isolation transformer is specifically designed and tested to meet the strict requirements of IEC 60601-1 and related standards. These transformers provide galvanic isolation while maintaining extremely low leakage current, making them suitable for use in patient care areas, operating rooms, intensive care units, and other sensitive medical environments.
Understanding what makes a medical isolation transformer suitable for hospital use helps biomedical engineers, facility managers, and OEMs select the right equipment for compliance and patient safety.
What Is a Hospital Grade Medical Isolation Transformer?
A hospital grade medical isolation transformer is an enclosed isolation transformer built to support the electrical safety needs of healthcare facilities. Unlike general-purpose isolation transformers, hospital grade units are engineered to meet the leakage current limits defined in IEC 60601-1 for medical electrical equipment.
These transformers typically feature:
- Toroidal core construction for lower leakage current and reduced electromagnetic interference
- Electrostatic shielding between windings
- Enclosed construction suitable for installation in patient care areas
- Thermal protection and high-quality insulation
- Compliance with UL 60601-1 and IEC 60601-1 standards
Hospital grade transformers are often installed in fixed locations such as medical equipment racks, procedure rooms, or centralized power distribution panels serving multiple medical devices.
Why Hospitals Require Specialized Isolation Transformers
Healthcare facilities have unique electrical safety requirements because many medical devices are used in direct contact with patients. The IEC 60601-1 standard sets strict limits on leakage current to protect patients from electric shock.
Key reasons hospitals use dedicated medical isolation transformers include:
- Protecting patients with compromised skin or during invasive procedures
- Reducing electromagnetic interference with sensitive monitoring and diagnostic equipment
- Supporting compliance during equipment certification and facility inspections
- Providing a reliable, low-leakage power source for critical care areas
Without proper isolation, even small leakage currents can become dangerous in medical environments.
Key Requirements for Hospital Grade Medical Isolation Transformers
Hospital grade transformers must meet several technical requirements:
| Requirement | Description | Why It Matters |
|---|---|---|
| Low Leakage Current | Must meet IEC 60601-1 limits for Type B, BF, or CF applied parts | Patient safety |
| Enclosed Construction | Suitable for installation in patient care areas | Safety and compliance |
| Electrostatic Shielding | Reduces capacitive coupling and high-frequency noise | Lower EMI and leakage |
| Thermal Protection | Built-in protection against overheating | Reliability and safety |
| Toroidal Core Design | Lower core losses and stray magnetic fields compared to EI cores | Better performance |
| Compliance Certifications | UL 60601-1 and/or IEC 60601-1 recognition | Regulatory acceptance |
Toroidal vs Traditional Designs in Hospital Settings
As discussed in previous articles, toroidal transformers generally offer advantages over traditional EI-core designs in medical applications. In hospital environments, these advantages become especially valuable.
Toroidal hospital grade medical isolation transformers typically provide:
- Lower leakage current
- Reduced electromagnetic interference
- Smaller size and lighter weight
- Quieter operation
- Higher efficiency and lower heat generation
These characteristics make toroidal designs the preferred choice for most modern hospital grade medical isolation transformers.
Common Applications in Healthcare Facilities
Hospital grade medical isolation transformers are used in a wide range of medical settings, including:
- Operating rooms and procedure suites
- Intensive care units (ICU) and cardiac care units
- Patient monitoring and diagnostic equipment
- Dental operatories and surgical suites
- Medical imaging and laboratory equipment
- Centralized power distribution for multiple medical devices
In many of these applications, the transformer is installed as a fixed component of the facility’s electrical infrastructure rather than as a portable device.
Hospital Grade Medical Isolation Transformers Comparison
| Feature | Standard Isolation Transformer | Hospital Grade Medical Isolation Transformer |
|---|---|---|
| Designed for patient contact | No | Yes |
| Leakage current performance | Variable | Meets strict IEC 60601-1 limits |
| Enclosed and suitable for patient areas | Often not | Yes |
| Electromagnetic interference | Higher | Significantly lower |
| Typical certifications | General electrical standards | UL 60601-1 and IEC 60601-1 |
| Common use cases | Industrial and commercial | Hospitals, surgical centers, and medical facilities |
Popular IsoPuck Models for Hospital Use

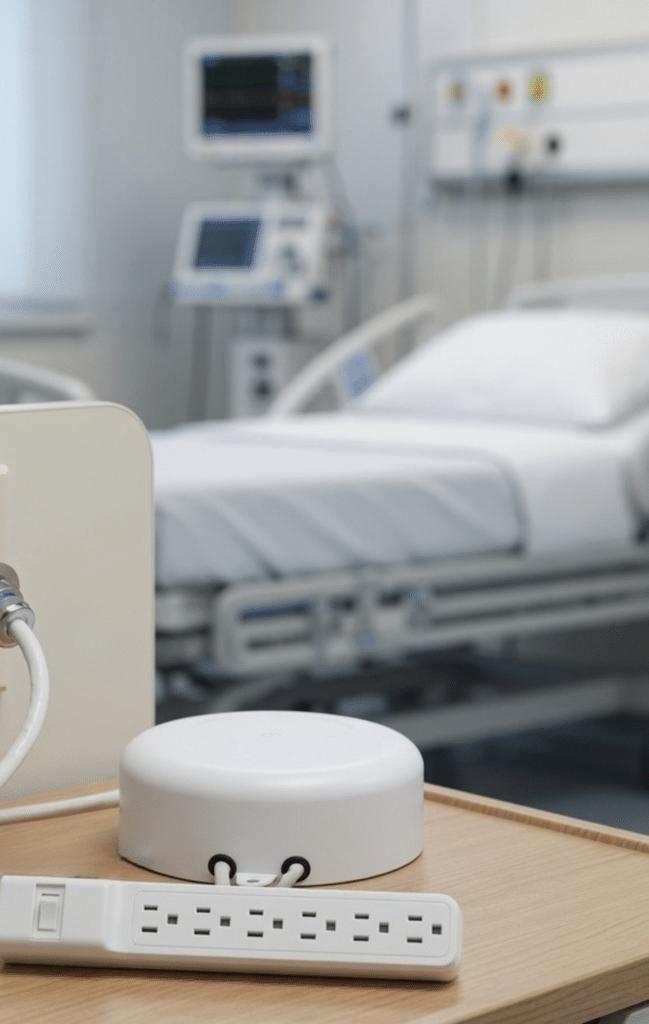

Bridgeport Magnetics manufactures compact toroidal medical isolation transformers under the IsoPuck brand that are well suited for hospital and healthcare applications. Two models frequently used in healthcare settings are the IP1200/60 and the IP2500/60.
- The IP1200/60 (1200VA) offers a strong balance of capacity and compact size, making it suitable for procedure rooms, operating rooms, and multi-device medical equipment setups.
- The IP2500/60 (2500VA) provides higher capacity for applications with greater power demands, such as larger procedure rooms, centralized power distribution, or installations serving multiple medical devices, while maintaining excellent leakage current performance.
Both models feature electrostatic shielding and are designed to support compliance with IEC 60601-1 requirements.
Product Callout Bridgeport Magnetics IsoPuck Series Compact toroidal hospital grade medical isolation transformers from 200 VA to 3000 VA, including the IP1200/60 (1200VA) and IP2500/60 (2500VA) models. Designed for 120V operation with electrostatic shielding to help achieve low leakage current. UL 60601-1 and IEC 60601-1 compliant. Custom configurations available for healthcare applications.
Request a quote or speak with our engineers
FAQ
What makes a medical isolation transformer “hospital grade”? Hospital grade medical isolation transformers are designed and tested to meet the strict leakage current and safety requirements of IEC 60601-1 for use in patient care environments. They are typically enclosed and suitable for installation in healthcare facilities.
Do all hospitals need hospital grade isolation transformers? Not every piece of medical equipment requires an external isolation transformer. However, many facilities install them in critical care areas, operating rooms, and for equipment that must meet high safety standards.
How does a toroidal design benefit hospital applications? Toroidal transformers generally offer lower leakage current, reduced electromagnetic interference, smaller size, and quieter operation compared to traditional EI-core designs. These characteristics are particularly valuable in sensitive medical environments.
Can one hospital grade transformer support multiple devices? It depends on the total load and the specific application. Higher-capacity units such as the IP1800/60 can often support multiple devices, but each installation should be evaluated based on power requirements and safety classification.
Are Bridgeport IsoPuck transformers suitable for hospital use? Yes. The IsoPuck series is designed and tested to support compliance with UL 60601-1 and IEC 60601-1 standards, making them suitable for many healthcare applications.
