GOSS E-Cores
Grain-oriented silicon steel E-cores providing traditional laminated core design with reliable magnetic performance and easy pre-wound coil assembly for 50/60 Hz power transformers and inductors.
Custom GOSS E-Cores (Silicon Steel E-Cores)
Bridgeport Magnetics supplies reliable GOSS E-cores for power transformers and inductors. Our grain-oriented silicon steel E-cores offer a traditional laminated core design with excellent magnetic performance and easy assembly using pre-wound coils.
From standard sizes to custom configurations for industrial, utility, renewable energy, and other 50/60 Hz applications.
Why Choose GOSS E-Cores for Power Transformers and Inductors
Grain-oriented silicon steel (GOSS) E-cores deliver reliable magnetic performance with a traditional laminated design. This construction provides easy pre-wound coil assembly and consistent performance, making them a proven choice over non-oriented or less optimized cores in 50/60 Hz applications.
For engineers and manufacturers, this translates to:
- Simple and fast assembly using pre-wound coils
- Reliable magnetic performance at standard power frequencies
- Cost-effective solution for a wide range of transformer and inductor designs
- Excellent scalability for custom industrial and utility projects
Specifications

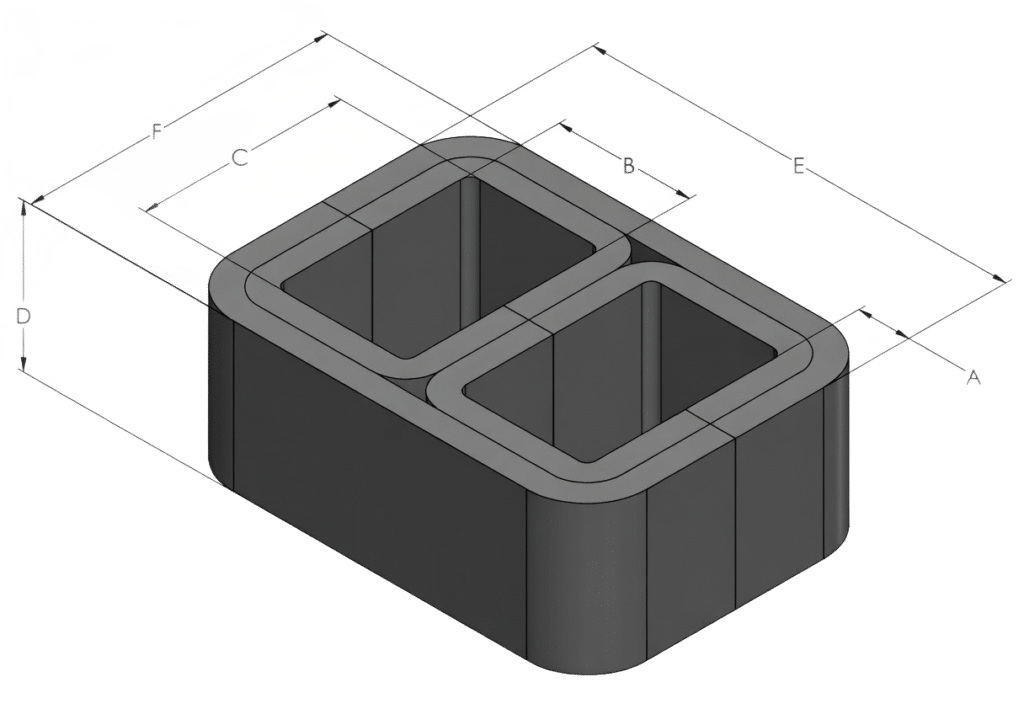

| Part No. | A | B | C | D | E | F |
|---|---|---|---|---|---|---|
| BMEC4 | 9 | 20.5 | 33 | 15 | 68 | 51 |
| BMEC6.3 | 10 | 23 | 42.2 | 20 | 76 | 62.2 |
| BMEC8 | 11 | 25 | 32.2 | 20 | 83 | 54.2 |
| BMEC10 | 11 | 25 | 40.2 | 20 | 83 | 62.2 |
| BMEC16A | 11 | 25 | 40.2 | 25 | 83 | 62.2 |
| BMEC16B | 11 | 25 | 50.2 | 25 | 83 | 72.2 |
| BMEC20 | 11 | 25 | 52.2 | 30 | 83 | 74.2 |
| BMEC25 | 13 | 29 | 58.2 | 25 | 97 | 84.2 |
| BMEC32 | 13 | 29 | 58.2 | 30 | 97 | 84.2 |
| BMEC40 | 13 | 29 | 58.2 | 35 | 97 | 84.2 |
| BMEC50 | 16 | 37 | 70.2 | 25 | 122 | 102.2 |
| BMEC63 | 16 | 37 | 70.2 | 30 | 122 | 102.2 |
| BMEC80 | 16 | 37 | 70.2 | 40 | 122 | 102.2 |
| BMEC100 | 16 | 37 | 70.2 | 45 | 122 | 102.2 |
| BMEC125 | 19 | 45 | 83.2 | 35 | 147 | 121.2 |
| BMEC160 | 19 | 45 | 83.2 | 40 | 147 | 121.2 |
| BMEC200 | 19 | 45 | 83.2 | 50 | 147 | 121.2 |
| BMEC250 | 19 | 45 | 90.2 | 60 | 147 | 128.2 |
| BMEC320 | 22 | 58 | 85.2 | 50 | 182 | 129.2 |
| BMEC400 | 22 | 57 | 85.2 | 65 | 180 | 129.2 |
| BMEC500 | 25 | 66 | 85.2 | 55 | 207 | 135.2 |
| BMEC630 | 25 | 66 | 85.2 | 70 | 207 | 135.2 |
| BMEC800A | 25 | 66 | 85.2 | 85 | 207 | 135.2 |
| BMEC800B | 30 | 71 | 95.2 | 95 | 232 | 155.2 |
| BMEC1000 | 33 | 74 | 105.2 | 85 | 247 | 171.2 |
